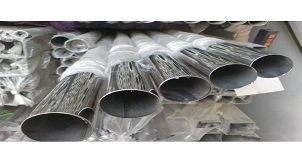

316L stainless steel decorative pipe
About 316L stainless steel decorative pipe
316L stainless steel tube decorative tube is a hollow round steel, bright surface.Mainly widely used in petroleum, chemical, medical, food, light industry, machinery and instruments and other industrial transportation pipeline and mechanical components, etc.
In addition, the bending and torsion strength of the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structure.It's also used in the construction of exterior decoration.
The advantage of 316L pipe
Due to the addition of Mo, the corrosion resistance, especially the pitting corrosion resistance is excellent. High temperature strength is also very good. Excellent work hardening (weak magnetic properties) No magnetism in solid solution state Has good resistance to chloride erosion, so it is usually used in the marine environment.
Finish processing for decoration round pipe
In order to meet the requirements of various types of decorative requirements, has developed a variety of different commercial surface processing.
For example, the surface can be highly reflective or dull; can be smooth, polished or embossed; can be colored, color or pattern, electroplating in etching stainless steel surface to meet the design requirements of the appearance of a variety of personnel.
Chemical composition and Physical property
Grade(材质) | C(%)(碳) | Si(%)(硅) | Mn(%)(锰) | Cr(%)(铬) | P(%)(磷) | S(%)(硫) | N(%)(氮) | Ni(%)(镍) | Cu(%)(铜) |
316L | ≤0.03 | ≤1.00 | ≤2.00 | 16.00-18.00 | ≤0.045 | ≤0.03 | ≤0.10 | 10-14 | --- |
Grade(材质) | TS(Mpa)(抗拉强度) | YS(Mpa)(屈服强度) | EL(Mpa)(伸长率) |
316L | ≥485 | ≥170 | ≥30 |
Allowed wall thickness tolerance
Level(等级) | Wall tolerance allowed(范围) |
D1 | +-1.5%,Min +-0.75mm |
D2 | +-1.0%,Min +-0.50mm |
D3 | +-0.75%,Min +-0.30mm |
D4 | +-0.50%,Min +-0.10mm |
Calculating formula for weight(KG/M)
(Outdais meter-wall thickness)×wall thickness}×0.02491=KG/M
201 stainless steel decorative pipe
201 stainless steel decorative tube is also called stainless steel welded steel pipe referred to as 201 welded pipe,commonly used in steel or steel strip after the unit and the mold coil forming after welding made of steel.
201 welding steel pipe production process is simple, the production efficiency is high, the variety of specifications, equipment and less capital, but the general strength is lower than the seamless steel pipe. But 201 in the construction of a very wide range of decorative. And the production process is simple, high efficiency, low price.
