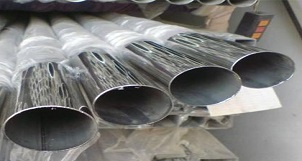

304 stainless steel decorative pipe
About 304 stainless steel decorative pipe
304 stainless steel decorative tube is the most common in life, the most frequent use of the material. Becauseof the production process is simple, high efficiency, short production cycle, so get the majority of customers.
304 as the pipe for conveying fluid, such as oil, gas, water, gas, steam, in addition, the bending and torsional strength of the same, the weight is light, so it is widely used in the manufacture of machinery parts and engineering structures.And 304 of the decoration is very strong, widely used in building decoration, housing decoration and public property chang.
Finish processing
We can process the finish according to the customer's requirements.We have our processing machine,we can process No.4 / HL / Mirror finsih for decoration pipe based on the original finish(bright finsih)after produced from factory.
Chemical composition and Physical property
Grade(材质) | C(%)(碳) | Si(%)(硅) | Mn(%)(锰) | Cr(%)(铬) | P(%)(磷) | S(%)(硫) | N(%)(氮) | Ni(%)(镍) | Cu(%)(铜) |
304 | ≤0.08 | ≤1.00 | ≤2.00 | 18.00-20.00 | ≤0.045 | ≤0.03 | ≤0.10 | 8-11 | --- |
Grade(材质) | TS(Mpa)(抗拉强度) | YS(Mpa)(屈服强度) | EL(Mpa)(伸长率) |
304 | ≥520 | ≥205 | ≥40 |
Allowed wall thickness tolerance
Level(登记) | Wall tolerance allowed)公差范围) |
D1 | +-1.5%,Min +-0.75mm |
D2 | +-1.0%,Min +-0.50mm |
D3 | +-0.75%,Min +-0.30mm |
D4 | +-0.50%,Min +-0.10mm |
Calculating formula for weight(KG/M)
(Outdais meter-wall thickness)×wall thickness}×0.02491=KG/M
Application
304 stainless steel decoration pipe was widely used in stainless steel anti-theft window, stainless steel railings, stainless steel stair railing, interior design, etc.
