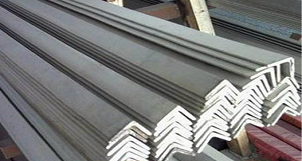

About stainless angle steel
Stainless steel angle steel strip is perpendicular to each other on both sides into angular, with stainless steel angle and equilateral equilateral angle steel of stainless steel.
The two sides stainless steel angles equal width, the specification is expressed by edge width * width * thickness mm side edge number. Such as 25 x 25 x 3", which said the sides stainless steel angles is 25 mm, width 3 mm thick.
Models do not represent the same type of different edge thickness dimensions, and thus in the contract and other documents will be stainless steel angle edge width, edge thick size fill in complete, avoid separately represented by models.
Inspections for Chemical and property
Chemical composition inspection
Component index: The chemical composition of stainless steel angle steel rolling steel series for general structure, the main test index for C, Mn, P, S four.
According to different grades, the content of the different, roughly the range of C<0.22%, Mn:0.30 - 0.65%, P<0.060%, S<0.060%
Inspection method: Method for inspection of commonly used standard GB223, JISG1211, BS1837, BS - 1215, 19 F C, manual is 22536.
Property inspection
performance index: Tensile test and bending test. The indexes include the yield point,
tensile strength, elongation and bending.
Inspection method: Tensile test method. Method for inspection of commonly used standard GB/T228-87,JISZ2201, JISZ2241, ASTMA370, BS18, C, f is 1497 and DIN50145
Bend test method. Method for inspection of commonly used standard GB/T232-88, JISZ2204, JISZ2248, ASTME290, F, C and DIN50111 is 14019
Specification standard and classification
Classification: Mainly divided into equilateral equilateral angle steel and stainless steel stainless steel.The equilateral angle steel stainless steel can be divided into unequal thickness and unequal unequal thickness two.
Specification standard :
GB/T2101—89: General provisions on acceptance, packing, marking and quality certification of steel.
GB9787—88/GB9788—88: Hot rolled stainless steel / non equilateral angle steel dimensions, shape, weight and tolerances.
JISG3192—94: Shape, size, weight and tolerance of hot rolled steel.
DIN17100—80: Quality standard for common structural steel.
ГОСТ535—88: Technical conditions of ordinary carbon steel.
Specoification and theoretical weight for stainless angle steel(KG/M)
Leg AxB(MM) 边长 AxB(MM)
| Thickness(MM) 厚度（MM） | |||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
20x20 2# | 0.894 | 1.13 | 1.38 | |||||
25x25 2.5# | 1.13 | 1.46 | 1.77 | 2.06 | ||||
30x30 3# | 1.37 | 1.77 | 2.17 | 2.53 | ||||
35x35 3.5# | 1.61 | 2.09 | 2.57 | 3.01 | ||||
40x40 4# | 1.85 | 2.41 | 2.97 | 3.49 | ||||
45x45 4.5# | 2.12 | 2.76 | 3.40 | 4.00 | ||||
50x50 5# | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
60x60 6# | 4.58 | 5.42 | 6.24 | 7.03 | ||||
63x63 6.3# | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
70x70 7# | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.30 | ||
75x75 7.5# | 5.82 | 6.89 | 7.95 | 8.97 | 10.00 | 11.10 | ||
80x80 8# | 7.37 | 8.50 | 9.61 | 10.70 | 11.80 | |||
90x90 9# | 8.33 | 9.65 | 11.90 | 12.20 | 13.40 | |||
100x100 10# | 9.28 | 10.80 | 12.20 | 13.60 | 15.00 | |||
Specification(MM) 规格（MM） | Weight(MM) 重量（MM） | Specification(MM) 规格（MM） | Weight(MM) 重量（MM） |
25x16x3 | 0.91 | 100x63x6 | 7.55 |
25x16x4 | 1.18 | 100x63x7 | 8.72 |
32x20x3 | 1.17 | 100x63x8 | 9.88 |
32x20x4 | 1.52 | 100x63x10 | 12.10 |
40x25x3 | 1.48 | 100x80x6 | 8.35 |
40x25x4 | 1.94 | 100x80x7 | 9.66 |
45x28x5 | 1.69 | 100x80x8 | 10.90 |
45x28x5 | 2.20 | 100x80x10 | 13.50 |
50x32x3 | 1.91 | 110x70x6 | 8.35 |
50x32x4 | 2.49 | 110x70x7 | 9.66 |
56x36x3 | 2.15 | 110x70x8 | 10.90 |
56x36x4 | 2.82 | 110x70x10 | 13.50 |
56x36x5 | 3.47 | 125x80x7 | 11.10 |
63x40x4 | 3.19 | 125x80x8 | 12.60 |
63x40x5 | 3.92 | 125x80x10 | 15.60 |
70x45x4 | 3.57 | ||
70x45x5 | 4.40 | ||
70x45x6 | 5.22 | ||
70x45x7 | 6.01 | ||
75x50x5 | 4.81 | ||
75x50x6 | 5.70 | ||
75x50x8 | 7.43 | ||
75x50x10 | 9.10 | ||
80x50x5 | 5.00 | ||
80x50x6 | 5.93 | ||
80x50x7 | 6.85 | ||
80x50x8 | 7.75 | ||
90x56x5 | 5.66 | ||
90x56x6 | 6.72 | ||
90x56x7 | 7.76 |
Commonly used grade for Angle
200 series: 201 202 etc
300 series: 301 303 304 304L 309S 310S 316L 321 etc
400 series: 410 410S 420 440C 430 436 439 444 445 409L etc
Duplex series: 2205 2507 S31803 etc
Super series: 904L etc
Applications
Application of stainless steel angle in life is very wide. For a variety of architectural and engineering structures, such as beams,
bridges, towers, hoisting and conveying machinery, ships, industrial furnace, reaction tower, container frame and warehouse.
Calculating formula for weight(KG/M)
Weight(KG/M)=0.00785xleg thicknessx(2xleg width-leg thickness)
